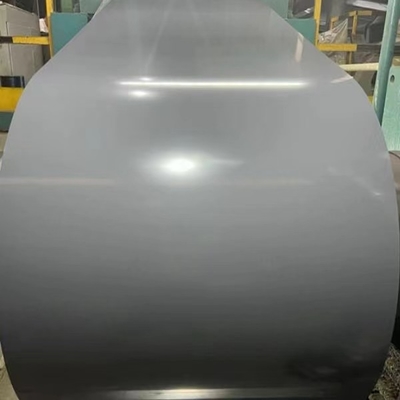

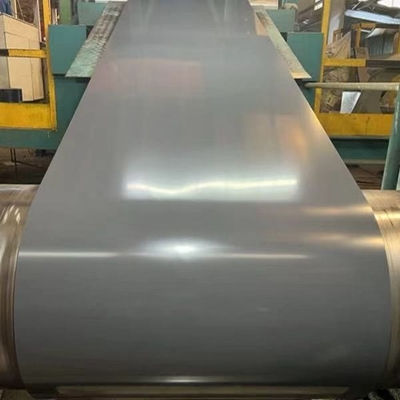

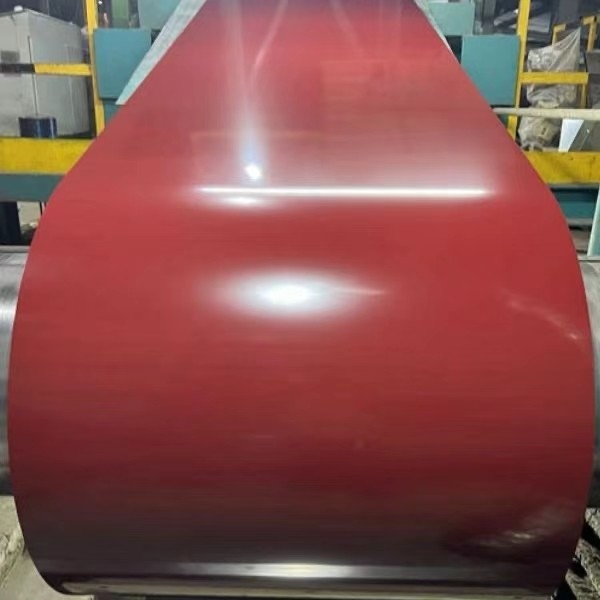

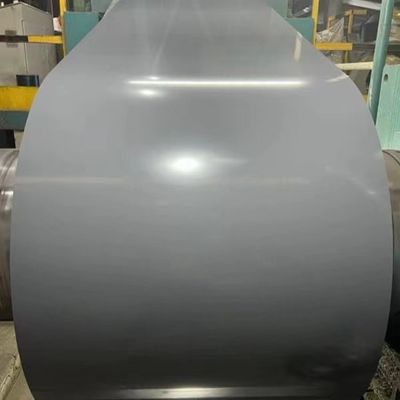

AISI 표준 DX51D 610MM 목재 PPGI 강철 코일 장식
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | Wooden PPGI---HUIYI |
| 인증: | SGS,ISO,BV |
| Model Number: | CGCC,CGLCC, CGCH , G550,G400,G450,DX51D |
결제 및 배송 조건:
| 최소 주문 수량: | 25톤 |
|---|---|
| 가격: | based on true requirements |
| 포장 세부 사항: | 방수 종이와 표준 수출국 package.wrapped, 고밀도 폴리에틸렌필름, 메탈 밴드, 수평선상인 분 4 밴드, 수직인 분 3 밴드로 끈으로 묶이는 금속 에지 보호기들과 철판 |
| Delivery Time: | 20-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 tons per month |
|
상세 정보 |
|||
| Color: | RAL Color | thickness: | 0.12-1.5mm |
|---|---|---|---|
| width: | under 1500mm | 코일 아이디: | 508 mm,610mm |
| Material: | GI,GL,SS Steel，Aluminium | 표면 처리: | 코팅, 아연 도금, 건조, 인쇄 |
| Standard: | ASTM,GB,JIS,AISI,DIN | 적용: | 지붕, 장식 |
| Coil weight: | based on customers‘requirements | Zinc coating: | 30-275g/m2,40-600g/m2,40g/m2 - 275g/m2 |
| 강조하다: | PPGI 스틸 코일 장식,610MM PPGI 강철 코일,DX51D PPGI 강철 코일 |
||
제품 설명
■ Standard : JIS G3312-1998 , ASTM A755 , GB / T12754 - 2006
■ Grade : SPCC , SPCD , SPCE , DX51 / 52 / 53 / 54D + Z , Q195 / 215 / 235 And Etc
■ Base Metal : Cold Rolled Steel / Galvanized Steel / Galvalume Steel
■ Material Thickness : Normally 0.15 -1.5 mm
■ Width : 30 - 1500 mm ( Mainly in 914 mm ,1000 mm , 1219 mm and 1250 mm )
■ Coating : PE / PVDF / SMP
■ Coating Thickness : Min. Single Side - 50 g / sqm Max. Single Side - 275 g / sqm
■ Top Painting : 13 - 20 micrometer
■ Back Painting : 7 - 10 micrometer
■ Surface Finished Color : According To RAL Standard
■ Packing Condition : Seaworthy
Pre-painted coils are manufactured by applying high-performance paint coatings onto cold-rolled, galvanized, or Galvalume steel substrates. Combining aesthetic versatility with exceptional durability, these color-coated steel coils offer:
- Customizable Color Options: Available in a broad spectrum of colors to meet design requirements.
- Specialized Coatings: Engineered for specific applications (e.g., weather resistance, chemical protection).
- Wide Application Range: Suitable for both **interior and exterior uses, including architectural cladding, sandwich panels, and more.
Our pre-painted coils deliver long-lasting performance while maintaining vibrant finishes, making them ideal for demanding environments.
Color-coated steel offers outstanding decorative appeal, bendability, corrosion resistance, coating adhesion, and color fastness, making it a superior choice for modern construction applications.
As an eco-friendly and cost-effective alternative to wood panels, color-coated steel provides:
Easy installation – Reduces labor time and costs
Energy efficiency – Enhances building insulation performance
Stain resistance – Maintains aesthetics with minimal maintenance
| Buildings And Constructions | Workshop , Warehouse , Corrugated Roof And Wall , Rainwater , Drainage Pipe , Roller Shutter Door |
| Electrical Appliance | Refrigerator , Washer , Switch Cabinet , Instrument Cabinet , Air Conditioning , Micro - wave Oven , Bread Maker |
| Furniture | Central Heating Slice , Lampshade , Book Shelf |
| Carrying Trade | Exterior Decoration Of Auto And Train , Clapboard , Container , Insulation Board |
| Others | Writing Panel , Garbage Can , Billboard , Timekeeper , Typewriter , Instrument Panel , Weight Sensor , Photographic Equipment |
