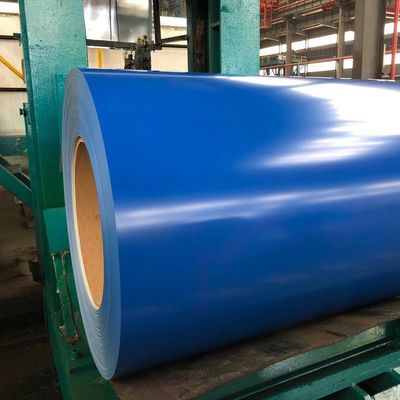

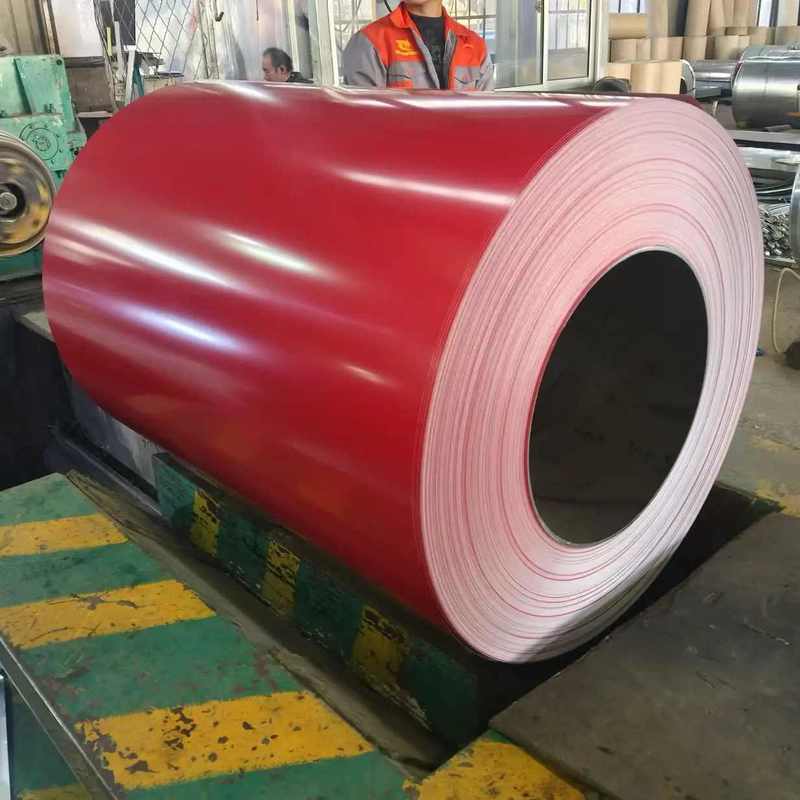

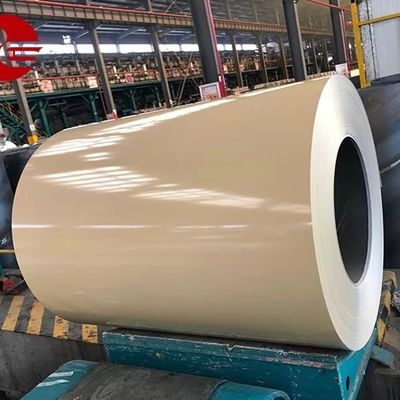

PVDF Coating Weatherable Prepainted Galvalume Steel Coil For Architecture
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | HuiYi-PPGL |
| 인증: | ISO,ASTM |
| 모델 번호: | CGLCC, G550 |
결제 및 배송 조건:
| 최소 주문 수량: | 25MT |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | VCI 크래프트 페이퍼 + 0.3mm PE 필름 + 에지 가드가있는 스틸 스트랩 된 팔레트 |
| 배달 시간: | 15-30 일 |
| 지불 조건: | t/t, l/c, d/p |
| 공급 능력: | 5000mt/월 |
|
상세 정보 |
|||
| 제품 이름: | 기채색 갈바륨 강판 | 재료: | Gallvalume Steel |
|---|---|---|---|
| 크기: | (0.3-1.2) mm × (600-1250) mm | 색상: | RAL 색 |
| 인장 강도: | 270-550 MPA | 항복 강도: | 245-495 MPA |
| 코팅 구조: | 프라이머 + PVDF 탑코트 | 보증: | 20년 색상 유지 |
| 강조하다: | PVDF coated Galvalume steel coil,weatherable prepainted PPGL coil,architectural Galvalume steel coil |
||
제품 설명
PVDF Coating Weatherable Prepainted Galvalume Steel Coil For Architecture
Our PVDF Coating Weatherable Prepainted Galvalume Steel Coil is engineered for superior architectural performance in demanding environments. This product combines the inherent corrosion resistance of a 55% aluminum-zinc alloy substrate (AZ100-AZ150) with a top-tier Polyvinylidene Fluoride (PVDF) resin coating. The exceptional strength of the fluorine-carbon bond in PVDF provides outstanding resistance to solar radiation, chemicals, and pollution, effectively resisting coating degradation caused by solar oxidation. While PVDF coatings may come at a higher cost compared to systems like polyester (PE) or silicone modified polyester (SMP), their near-maintenance-free characteristics and long service life make them the preferred choice for landmark buildings in highly corrosive or high-salt areas. This coil is an ideal, cost-effective solution over its lifespan for iconic structures like international airports, convention centers, and skyscrapers.
Technical Parameters
| Parameter | Specification |
|---|---|
| Base Material | DX51D+AZ (ASTM A792) |
| Thickness | 0.3mm - 1.2mm (±0.03mm) |
| Width | 600mm - 1,250mm |
| Coating Weight | AZ100-AZ150 (100-150g/m²) |
| Paint System | PVDF (20-30μm) |
| Antibacterial Efficiency | ≥99% (vs. E. coli & S. aureus) |
| Surface Finish | Smooth/Matte, various embossed patterns available |
| Tensile Strength | 270-500 MPa |
| Salt Spray Resistance | 1,000hrs (ASTM B117) |
| Standards | ASTM A792, ISO 9001 |
Applications
- Architectural Cladding: Curtain walls, facades, and wall panels for commercial and public buildings.
- Roofing Systems: Long-lasting roofs for industrial plants, airports, and sports stadiums.
- Architectural Elements: Soffits, rain gutters, downpipes, and decorative panels.
Customization Options
- Colors: Full range of RAL colors, including custom matching.
- Surface Finish: Smooth, Matte, Woodgrain, Stucco, and other embossed patterns.
- Dimensions: Customized shearing to your required length and width.
- MOQ: Competitive Minimum Order Quantity, with sample services available.
Packing and Shipping
- Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
- Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
FAQ
When will you arrange production for prepainted steel coil?
In 7 workdays when we receive your advance payment.
What's the payment term for color coated steel coil?
30-50% TT in advance(based on your qty), 70% balance against copy B/L in 7 workdays.
When will you send BL copy?
In 3-5 workdays after shipment date.
When will you send original Documents?
In 3-5 workdays when we get the balance.
What is the lead time for samples?
Samples are available in 7-10 days after detailed requirements confirmation.
What is your working time?
Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
