상세 정보 |
|||
| 제품명: | 아연 도금 강철 코일 | 재료: | 고강도 강철 코일 |
|---|---|---|---|
| 크기: | (0.12-2.0) mm × (600-1250) mm | 인장강도: | 270-500 MPA |
| 항복 강도: | 140-280 MPA | 소금 스프레이 저항: | 1,200시간 (ASTM B117) |
| 패시베이션 유형: | Trivalent Chromium (ROHS/Reach Compliant) | 백인 녹슬 보증: | 6-12 개월 습한 저장 |
| 강조하다: | DX51D+Z galvanized steel coil,anti-rust steel coil for infrastructure,galvanised steel coil with warranty |
||
제품 설명

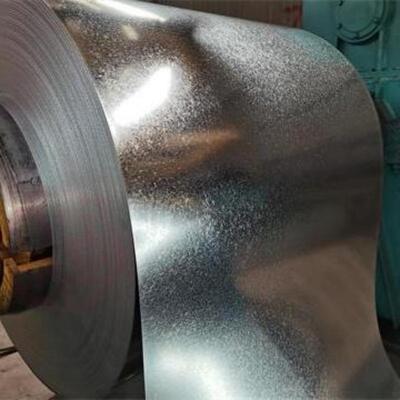

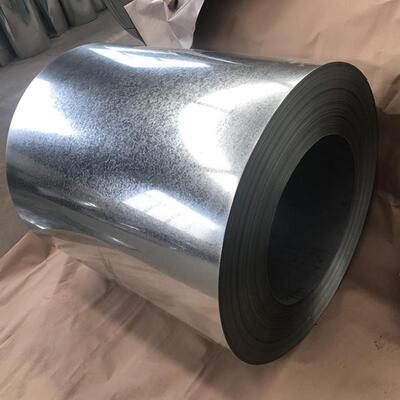

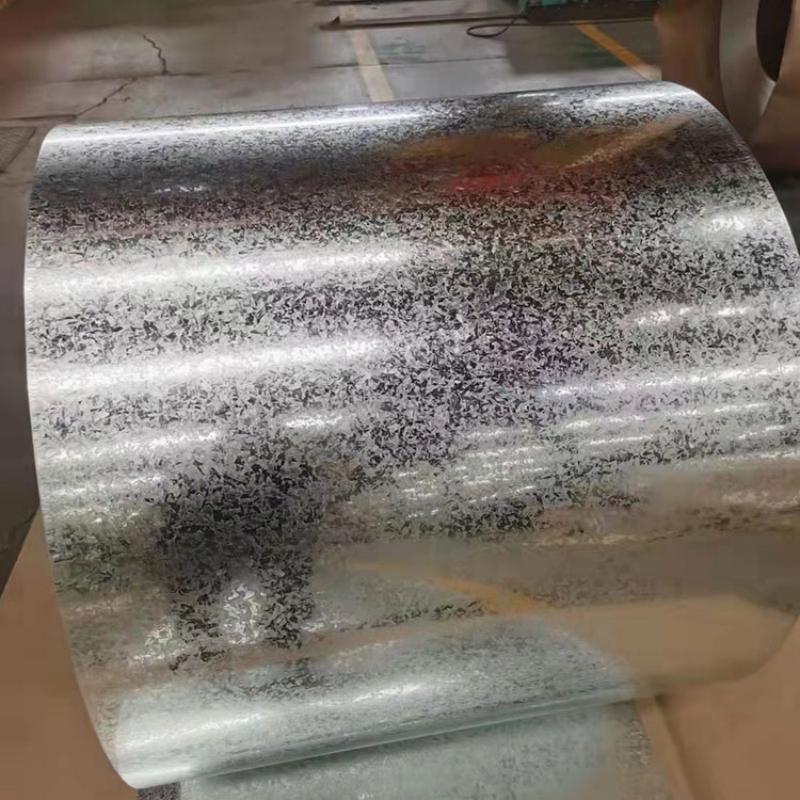

Engineered for demanding infrastructure applications, our DX51D+Z Anti-Rust Galvanized Steel Coil delivers exceptional corrosion resistance through a specialized chromate passivation process. The treatment forms a dense protective barrier that prevents white rust formation during outdoor storage and pre-construction phases.
With zinc coating grades Z90-Z275 and salt spray resistance up to 1,200 hours, this coil maintains structural integrity in coastal and high-humidity environments. Certified to ASTM A653 and EN 10346 standards, it features enhanced adhesion properties for subsequent painting or powder coating processes. Ideal for bridges, transmission towers, and highway guardrails where long-term corrosion protection is critical.
| Parameter | Specification |
|---|---|
| Base Material | DX51D+Z (ASTM A653, EN 10346) |
| Thickness | 0.12mm - 2.0mm(±0.02mm) |
| Width | 600mm - 1,500mm |
| Coating Weight | Z100-Z275 (100-275g/m²) |
| Surface Treatment | Chromated Passivation |
| Salt Spray Resistance | 1,200hrs (ASTM B117) |
| Coil ID | 508mm/610mm |
| Coil Weight | 3-8 Tons |
- Bridge Components: Corrosion-resistant structural elements for coastal and river-crossing bridges
- Power Transmission: Towers and substation structures in corrosive industrial environments
- Highway Systems: Guardrails, sign supports, and noise barrier frameworks
- Public Utilities: Electrical enclosure boxes and drainage system components
We ensure secure delivery with VCI+PE dual-layer waterproof packaging and reinforced edge guards for optimal corrosion protection. Global shipping options are available via FOB/CIF, with project quantities delivered within 25-30 days. Each shipment includes pre-shipment inspection and moisture indicators for quality assurance.
