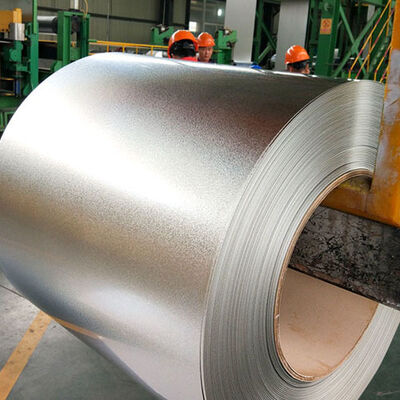

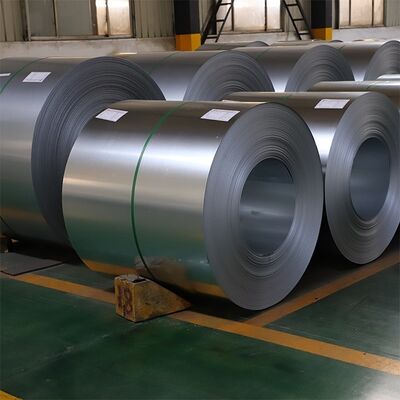

AZ180 Heavy Coated Galvalume Steel Coil For Coastal Industrial Roofing
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | Huiyi-GL |
| 인증: | ASTM A792M, EN 10346, ISO 9001 |
| 모델 번호: | DX51D+AZ |
| 문서: | HUIYI CATALOGUE.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 25톤 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 방수 플라스틱 필름, 방수 용지 - 플라스틱 필름 금속 랩을 포함한 3Layers로 포장을 수출합니다. |
| 배달 시간: | 15-30일 |
| 지불 조건: | 패/기음, 디/피, 티/티 |
| 공급 능력: | 5000mt/월 |
|
상세 정보 |
|||
| 제품명: | 갈바륨 강철 코일 | 제품 유형: | 코일/시트/스트립 |
|---|---|---|---|
| 코팅 중량: | 30-180G/㎡ | 코일 무게: | 3~8톤 |
| 두께: | 0.12 - 3.0mm | 너비: | 600mm - 1500mm |
| 주요 특징 1: | 아연도금강판보다 4~6배 더 긴 사용 수명 | 주요 특징 2: | 50년 기판 보증 제공 |
제품 설명
Our AZ180 Heavy Coated Galvalume Steel Coil is engineered for coastal and heavy industrial roofing applications where salt spray and pollutants cause relentless corrosion. Featuring a 55% aluminum-zinc alloy coating (AZ180, 180 g/m²), this product combines aluminum's barrier protection with zinc's sacrificial defense to deliver 4-6 times longer service life than standard galvanized steel, with documented field warranties up to 50 years. It withstands sustained temperatures up to 315°C (600°F). For coastal industrial roofing requiring maximum corrosion protection and minimal lifecycle cost, AZ180 is the ultimate long-term solution.
| Coating Composition | 55% Aluminum, 43.4% Zinc, 1.6% Silicon |
|---|---|
| Zinc Coating | AZ30 - AZ180 |
| Thickness | 0.12 - 3.0mm |
| Width | 600mm - 1500mm |
| Surface Treatment | Chromated Passivation, Oiled, Anti-Fingerprint |
| Spangle Finish | Regular / Minimized / Zero spangle |
| Heat Resistance | Up to 315°C continuous |
| Key Performance | 50-year substrate warranty available |
- Coastal Industrial Roofing & Cladding: Primary material for factories, processing plants, warehouses, and logistics centers located within coastal zones where salt spray and high humidity accelerate standard material degradation.
- Severe Industrial Environments: Chemical processing plants, pulp and paper mills, fertilizer plants, refineries, and other facilities exposed to aggressive industrial pollutants and chemical atmospheres.
- Marine & Port Facilities: Buildings at seaports, shipyards, dockside warehouses, and offshore platform support structures where resistance to seawater spray is critical.
- Power Generation & Infrastructure: Power plants, substation buildings, and critical infrastructure requiring maximum corrosion protection with minimal maintenance access.
Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance: Pre-shipment inspection and moisture indicators for transit protection.
